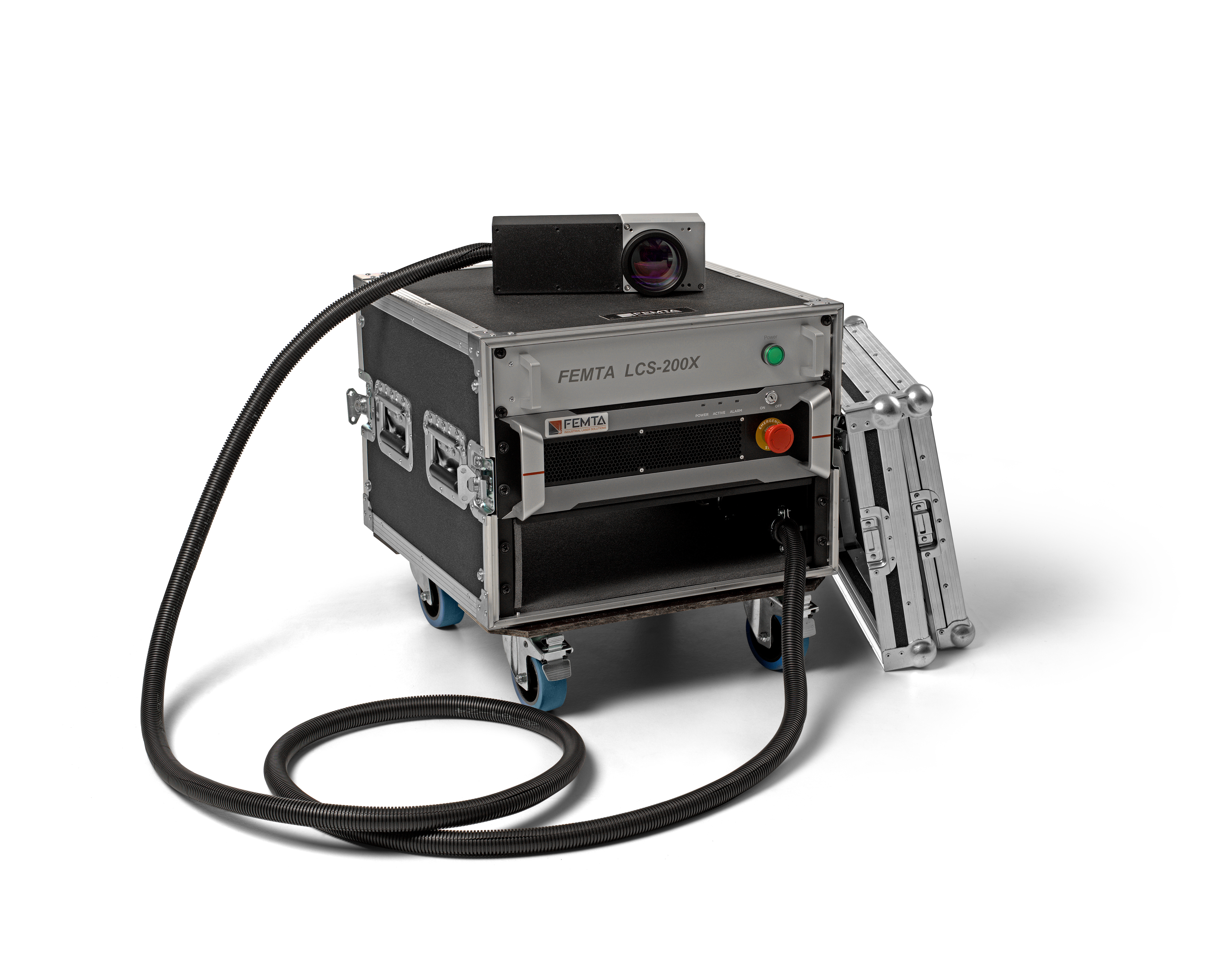

FEMTA LCS-200X

About LCS-200X

This is the most precise and advanced system produced by Femta, designed for precise, fully programmable, and ultra-fast robotic or automated cleaning of parts, with engraving capabilities. The equipment efficiently removes tough industrial deposits, such as epoxy resin and enamel or powder coatings, while preventing thermal damage to the cleaned surface. It features a Modbus TCP control connection for external equipment management.



Recommended application areas: serial parts production, cleaning of parts in repetitive processes.

Advantages of LCS-200X

  • Easy automation – the equipment can be easily integrated with the centralized control system used in the production process.
  • High process control – the most technically capable and precise system, assembled using the latest advanced components.
  • Extensive programming options – the ability to customize each scanning parameter, ensuring the most efficient and highest quality cleaning results.
  • Engraving possibility.

Technical specifications

Laser  parameters:



  • Laser source type: Pulsed fiber laser
  • Average output power: 200 W
  • Pulse dutation: 10 – 500 ns (variable)
  • Repetition rate: 1-4000 kHz (variable)

Galvoscanner parameters:



  • Cleaning area: up to 170 mm x 170 mm, 0.05 mm precision
  • Focal length (can be selected): 100/160/210/254/330 mm
  • Maximal scanning speed (at focal length): up to 33 m/s
  • Laser gun weight: 4 kg
  • Figures: unlimited, with possibility to upload custom designed graphic patterns.
  • Features: Full programmability of each process parameter.

Technical support

Mygtuko spaudimas
  • Quick and professional service – spare parts and technical staff available on-site.
  • Replacement equipment option – in case of damage or malfunction, work can continue without downtime.
  • Training of new operators – we will ensure a smooth and safe start using our equipment.
  • Equipment integration into existing production line – process optimization and calibration services.

How to choose right system:

  • Contact us by sending an e-mail to sales@femta.lt or by calling the telephone number +370 (633) 63 296.
  • For the best equipment adaptation, Femta engineers will take your needs into careful consideration and offer the optimal solution for your application.
  • If necessary, test cleanings of your provided samples will be performed.
